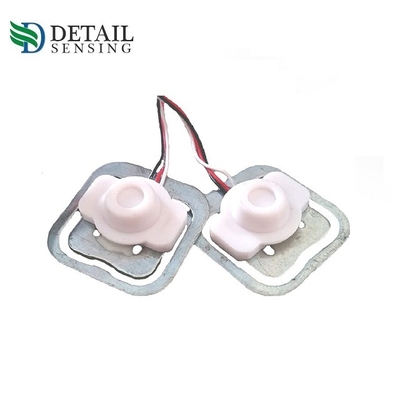

Name: Chinese Low Cost 3kg, 5kg Kitchen Kitchen Scale Scales Weighing Sensor Micro Load Cell
Brand: Chinese Low Cost 3kg, 5kg Kitchen Kitchen Scale Scales Weighing Sensor Micro Load Cell
SKU: DLC928NB
Price: 1 USD
Availability: InStock
Rating: 4.5 (126 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: DLC928NB

Usage: PRESSURE SENSOR

Theory: Resistance Sensor

Output: Analog SENSOR

Product name: Micro load cell

Capacity: 3kg,5kg

Accuracy: 0.05%

Material: Alloy Steel

dimension: 26*26*1mm

Excitation voltage: 3~10VDC

Use temperature: -10~+40â„ƒ

Safe overload: 120%

Ultimate overload: 150%

Application: kitchen scale,micro-fore test equipment

Βασικές πληροφορίες

Model Number: DLC928NB

Πληρωμής & Αποστολής Όροι

Packaging Details: Standard export packaging for micro load cell

Supply Ability: 400000 Piece/Pieces per Month micro load cell

Περιγραφή προϊόντων

Chinese low cost 3kg, 5kg kitchen scales weighing sensor micro load cell

Product Description

Description of micro load cell

Model: DLC928NB

Category: micro load cell

Range: 3kg,5kg

Dimension: 26*26*1mm

Material:alloy steel

Application: handle scale,kitchen scale,microfore test equipment

Characteristic: kitchen scale load cell, micro force load cell

Specification of micro load cell

Specification
comprehensive error:	0.05%FS	output resistance:	1000±10Ω
Rated output:	3kg:0.75±0.2mv/v 5kg:1.25±0.2mv/v	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.08%FS	Excitation voltage:	3~10VDC
Hysteresis:	0.08%FS	compensated temp:	-10~+40℃
Repeatability:	0.05%FS	use temperature:	-10~+55℃
Creep:	0.1%FS/3min	temp effect on zero:	0.5%FS/10℃
Zero balance:	±0.5mv/v	Temp effect on span:	0.1%FS/10℃
Input resistance:	1000±10Ω	defend grade:	IP65
